We specialize in Aluminum Composite Panels

What are Aluminum Composite Panels

Aluminum composite panel is a kind of new decorative material consisting of two thin coil-coated aluminum sheets bonded to a non-aluminum core, which is also known as Aluminum composite material in some area. Mostly it is called ACP or ACM for short.

Aluminum Composite Material or ACM is an essential material used in modern residential and commercial developments.

If you are looking for a durable, maintenance-free, and cost-effective material that can take on any shape and match any colour — Aluminum Composite Material (ACM) is the ideal architectural building material for you.

Notably lightweight and exceptionally easy to install, Aluminum Composite Panels (ACP) save costs on the front end, along with maintenance and replacement expenses in the long run. CACP Aluminum Composite Panels carry intrinsic robustness and fundamental quality that improve the structural integrity of the building while increasing the aesthetic value of every structure it enwraps.

Benefits & Features

Greater lmpact Resistance

The core comprises a viscoelastic high molecular resin material preventing cracking or breaking, yet comes with exceptional high stiffness and impact resistance properties.

Weather Durability

Panels are coated with Fluorocarbon (PVDF) resin that lt with stands the extreme weather conditionsand minimizes the possibility of acid alkali and saltspray corrosion, hence unaffected by the temperature change and the long-term bask of ultra violet ray. And it can be used for 20 years without fade.

Easy to maintain and clean

CACP panel performs well in its pollute
resistance. Even it is used in seriously polluted
area the panel just needs to be maintained and
cleaned after several years use.Only neutra
cleanser and water needed for its self-clean
performance. lt looks like new after clean.

Insulating and Sound Proofing

ACP maximizes the effect of insulation and sound proofing as the composition of the panel does not allow heat or sound to penetrate through the material due to its core, unlike steel solid, aluminium, tiles and other similar materials.

Smooth coating and Various color

Dealing with the surface of aluminum material and with the application of Henkle technology makes the panel stamped with a very strong smooth face and various color for your choice.

Economical and Ease of Installation

CACP panel will reduce the replace cost and installation time since the system does not require additional reinforcing structure and insulation layer.

Color Chart

Available in an unmatched selection of colours

CA301

Pure White

CA303

Egg White

CA302

Vanilla

CA306

Cream

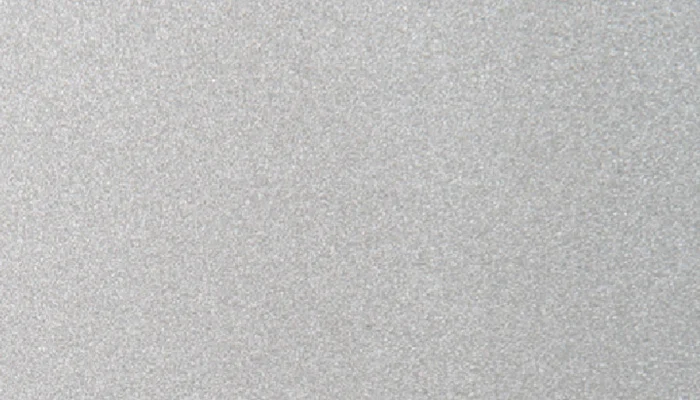

CA334

Silver Metallic

CA333

Bright Silver

CA339

Champagne Metallic

CA351

Gold Metallic

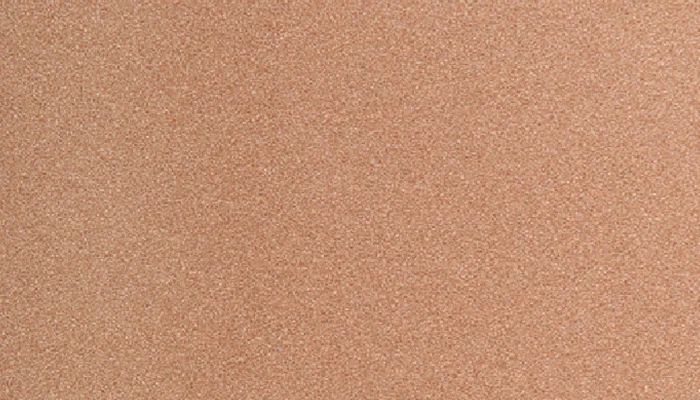

CA354

Copper Metallic

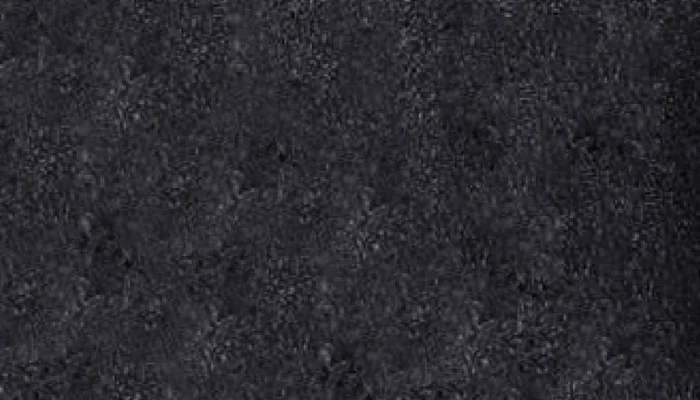

CA344

Slate Grey Metallic

CA342

Charcoal Metallic

CA317

Royal Blue

CA320

Azure Blue

CA318

Turquoise

CA321

Leaf Green

CA383

Grass Green

CA326

Violet

CA316

Rose Red

CA315

Tile Red

CA375

Saffron Yellow

CA325

Lime Green

CA324

Yellow

CA328

Orange

CA311

Red

CA312

Maroon

CA330

Coffee

CA305

Light Kakhi

CA308

Graphite Grey

CA335

Light Grey

CA310

Black

CA397

Mirror Silver

CA096

Mirror Gold

CA391

Brushed Silver

CAM20

Walnut

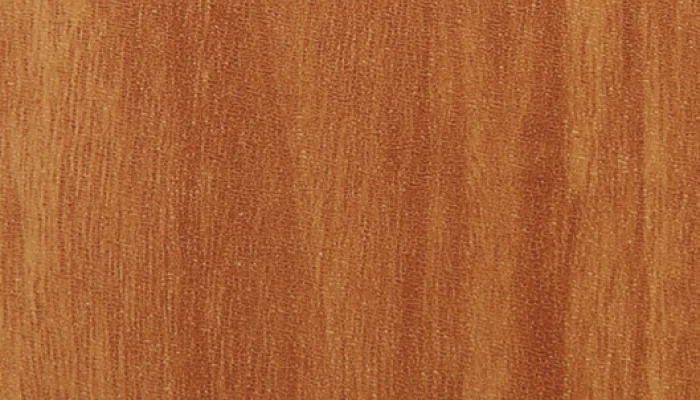

CAM21

Teak

CAM22

Acacia

CAM34

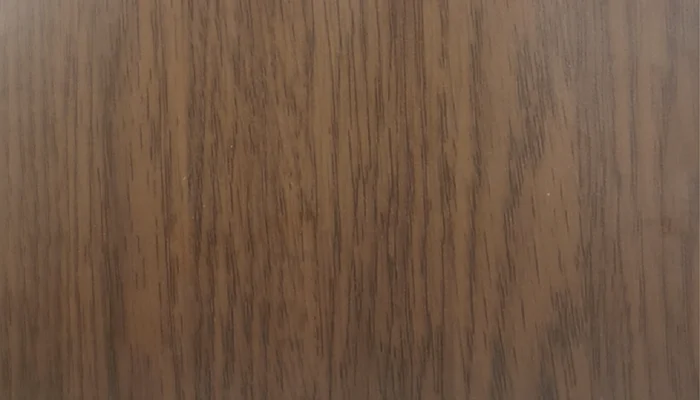

CAM38

CAM58

Didn’t find your exact colour match?

We develop custom CACP Aluminum Composite Panels to match your exact brand or requested color. With a speed unequaled in the industry and guaranteed for an exact match, CACP Aluminum Composite Material is the exterior cladding material you have been searching for.

Reach out to our professional team with your colour specifications, and we will get started on your bespoke panels today.

Technical Specifications

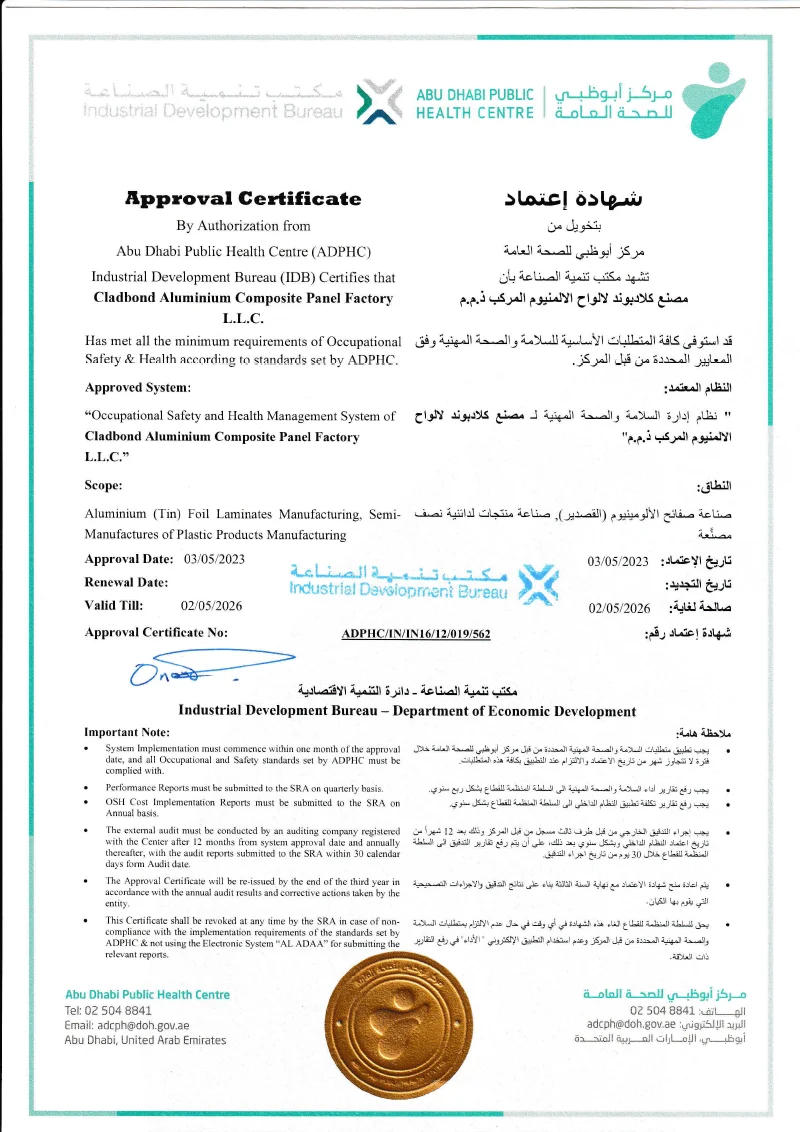

CACP operates in strict compliance with all Environmental Legislation applicable to our industry and holds all relevant certifications for our products. CACP composite panels can be fully recycled.

CACP are confident that our high manufacturing standards and focus on quality management result in our composite panels being second to none. CACP composite panels are guaranteed according to the selected – finish – please contact one of CACP’s representatives for further details

Specification
Width	1000mm,1250mm,1500mm,and up to 1590mm
Available Panel Thickness	3mm,4mm,5mm,6mm
Available Skin Thickness	0.5mm,0.4mm,0.3mm
Available Length	2440mm,3200mm,3600mm,and upto 6000mm
Weight	3mm=4.5kg/m2 :4mm=5.5kg/m2 :6mm=7.3kg/m2 (Polyethylene Core) 3mm=5.8kg/m2 :4mm=7.6kg/m2:6mm=10kg/m2 (Modified Mineral Core)
Coating	Kynar 500 FSF PVDF Metalic and Solid & Polyester Matte and High Gloss
Exterior Face of Bottom Skin	PE
Core	Polyethylene, Type LDPE
Fire Retardant Core	Modified Mineral & Linear Low Density Polyethylene
Colours	Standard RAL Colours or Custom Colours
Special Colours	As per Request
Customized Requirement	Available

Physical Properties
Test ltem	Test Value
Coating Thickness	>25um
Pencil Hardness	3H
Gloss Tolerance	35.3
Adhesive Strength	Grade 1
Boiling Water Resistance	2 Hrs, no change
Abrasion Resistance	5.33L/um
Thermal Expansion	23.1×10-6/°C
Thermal Conductivity	0.030w/m.k
Heat Deflection Temperature	99.4°C
Thermal Deformation Temperature	≥90°C
Acoustic Insulation	27dB

Chemical Properties
Test ltem	Test Value
Impact Resistance	50 kg/cm.no cracking
Bending Strength	>121Mpa
Shearing Strength	32Mpa
Peel Strength	1.1kg/mm
Tensile Strength	49Mpa/N/mm2
Flexural Modulus of Elasticity	3.12 x104Mpa

Chemical Properties
Test ltem	Test Value
Acid Resistance	No change
Alkaline Resistance	No change
Oil Resistance	No change
Solvent Resistance	No change
Resistance to Salt Spray	Grade 1
Fire Retardant Grades	B1 & A2

Standards:

USA: ASTM D903-98:2010, ASTM E84-15b, ASTM E119-16a, NFPA 285, ASTM D1929
Europe: EN 13501-1
